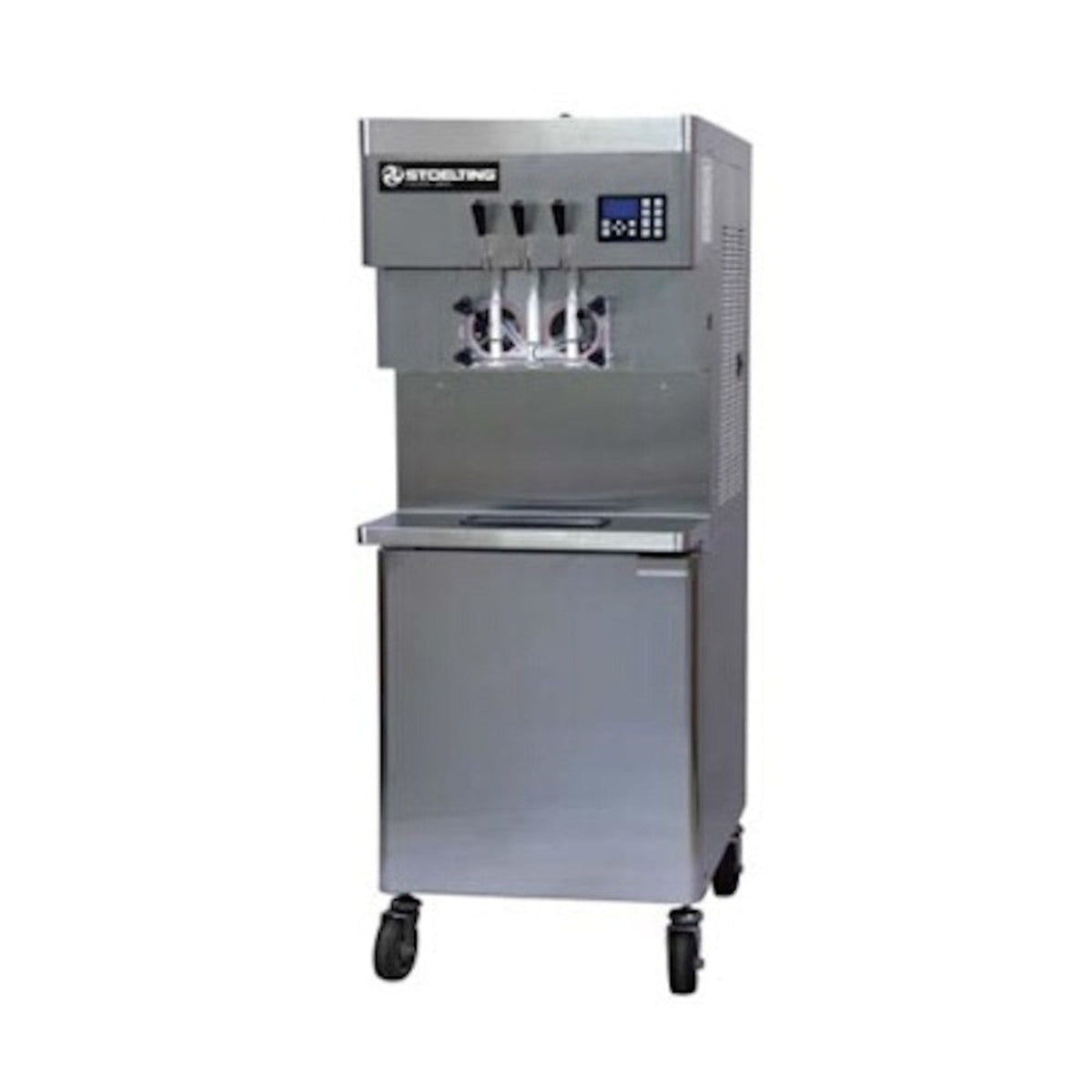

Sharp U431-309I2-SH Air Cooled Soft-Serve Freezer with Swing Handles - SEU431309I2SH

Sharp U431-309I2-SH Air Cooled Soft-Serve Freezer with Swing Handles - SEU431309I2SH

The Stoelting U431-309I2-SH Soft-Serve Freezer is ideal for producing a thick, smooth, and creamy product during peak times. With a highly efficient auger design, it gently folds the entire contents of the freezing cylinder to deliver consistently delicious results. The spigot is self-closing to reduce waste and ensure precision portion control. It maintains a consistent temperature and has a fast evaporator defrost.

This U431-309I2-SH can produce up to two flavors and offers a twist combination for customers. It allows for self-serve applications.

Features

• Air cooled
• Swing handles
• Refrigerated cabinet
• (2) flavors with twist
• Pressurized
• IntelliTec2 controls with LCD display
• Mix pumps
• Energy Conservation Mode
• Self-sharpening
• Nonmetallic auger flights
• Bottom sealing spigots
• Overcurrent protection devise (per barrel)
• Delrin food grade plastic blades provide quiet operation and superior durability
• Simplified design for quick assembly after cleaning
• Adjust the dispense rate to meet your requirements
• Clear door displays circulating product for merchandising appeal
• Efficient freezing cylinder and auger design delivers a consistently uniform product with small ice crystals and a quick recovery time
• Highly efficient auger design gently folds the entire contents of the freezing cylinder, delivering a thick, smooth, and creamy product
• Self-closing spigot eliminates waste and ensures precise portion control
• Pump approved for clean-in-place, reducing cleaning time and labor requirements
• Compact floor unit design saves valuable floor space
• Long-wearing parts offer lower preventative maintenance costs
• Tamper-proof controls for self-serve applications
• Maintains constant temperature with fast evaporator defrost
• Reliable and quiet with the combination of Stoelting’s evaporator system and the Scroll compressor
• Mix pumps inject the exact amount of air into your mix, maintaining overrun to ensure maximum profitability
• Factory start-up included

What our Experts Think

• High‑volume, commercial performance
  This air‑cooled, floor‑standing soft‑serve freezer delivers consistent output with dual flavors plus twist capability—up to ~19 gallons per hour per side—making it ideal for busy dessert operations and peak demand periods.
• Air‑cooled for flexible placement
  The efficient air‑cooled design eliminates the need for water hookups while providing reliable temperature control and stable performance in bustling kitchens or cafés.
• Advanced IntelliTec2™ controls
  Intuitive touchpad controls with diagnostic feedback help operators optimize consistency, adjust dispense rates, and reduce downtime.
• Energy savings & product protection
  Energy Conservation Mode (ECM) limits over‑agitation during idle periods, cutting energy use and protecting product quality between peak service times.
• Large refrigerated storage
  Integrated refrigerated cabinet stores mix safely, supporting long service runs and reducing refill frequency—helpful for high‑traffic venues.
• Smooth, creamy texture with precision control
  Pressurized freezing with efficient auger and mix pumps ensures well‑aerated, smooth soft‑serve from first to last dispense.
• Operator‑friendly & hygienic
  Features like self‑closing spigots, clear merchandising doors, and easy‑to‑clean components make this unit both efficient and appealing for staff and customers

Q&A

Q: What is the Stoelting U431‑309I2‑SH Air‑Cooled Soft‑Serve Freezer used for?
A: A heavy‑duty commercial soft‑serve freezer that produces two individual flavors plus a twist — ideal for ice cream, frozen yogurt, and dessert shops with high traffic.

Q: What cooling system does it use?
A: Air‑cooled design eliminates the need for water hookups, simplifying installation and reducing operating costs.

Q: What are the capacity and performance specs?
A: It delivers up to ~19 gallons per hour per side from dual 5.3‑qt freezing cylinders and includes a large refrigerated mix storage cabinet.

Q: What control features does it offer?
A: IntelliTec2™ touchpad controls with adjustable dispense rates, Energy Conservation Mode, self‑closing spigots, and a clear door for merchandising.

Q: What are the physical characteristics?
A: Floor‑standing unit with swing handles, approx. 26.75″ W × 39.5″ D × 68.75″ H, and robust construction for commercial use.

Q: What safety and certifications are included?
A: Certified NSF and UL/cUL for foodservice environments with overcurrent protection and durable, service‑ready components.

Q: Who should choose this model?
A: Ideal for restaurants, ice cream parlors, cafés, and self‑serve venues needing reliable, high‑volume soft‑serve production.

Q: What makes this freezer stand out?
A: Combines twin‑twist capability, efficient air cooling, IntelliTec2 controls, and a refrigerated base for extended mix storage and peak hour performance.

Maintenance Tips

• Daily clean & sanitize: Disassemble hoppers, augers, and spigots; use the clean-in-place system to maintain food safety.
• Clean air-cooled condenser: Remove dust and debris from condenser fins to ensure efficient cooling and prevent overheating.
• Inspect mix pumps & lines: Keep all product lines clear to maintain smooth, consistent soft-serve texture.
• Monitor IntelliTec2 controls: Check settings and error codes regularly for optimal consistency and reduced downtime.
• Check spigots & seals: Ensure self-closing spigots operate smoothly to avoid leaks and product waste.
• Avoid overfilling hoppers: Maintain proper fill levels (dual 8-gallon capacity) to prevent strain on the 2 HP system.
• Use standby mode when idle: Reduces product breakdown, energy use, and wear on components.
• Schedule preventive maintenance: Inspect motors, augers, and compressors periodically to ensure reliable operation.
